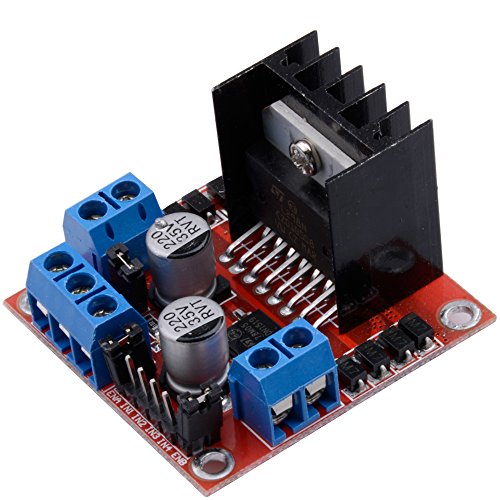

Qunqi L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper For Arduino /

Specification:
Chip: L298N
Logic voltage: 5V
Logic current 0mA-36mA
Storage Temperature: -20 ℃ to ℃ to +135
Operating mode: H-bridge driver (dual)
Drive voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W
Dimensions: 43x43x27mm

Package include:
1x L298N Module

Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4
