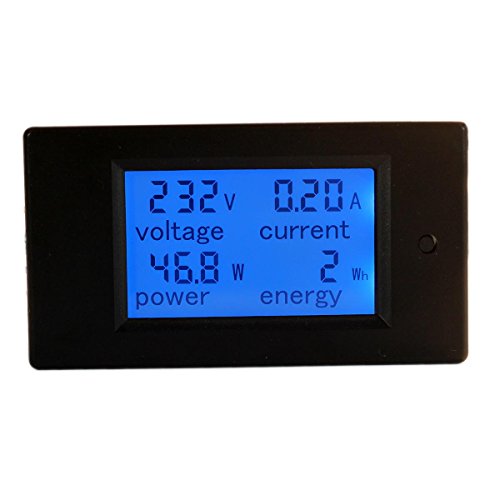

bayite AC 80-260V 100A BYT-VAEM-034 Digital Current Voltage Power Energy Analyzer Meter Ammeter Voltmeter with Open-close Current Transformer Split Core CT

This meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.

Main Specifications:

Working voltage: 80 ~ 260VAC
Working frequency: 50/60Hz
Measuring:Accuracy: 1%
Power Consumption: 0.2W
Measurement speed: 2 times/s
Operating Temperature Range: 14℉~140℉/-10℃~60℃
Store data when power off
The blue backlight can be turned on/off manually

Test Range and Display format:

1.Power: test range: 0~22kW
< 1kW, display: 0.0~999.9W
1kW~10kW, display: 1000~9999W
> 10kW, display: 0.1~22.0kW
2.Energy: test range: 0~9999kWh
10kWh, display: 10~9999kWh
3.Voltage: test range: 80~260V(single-phase)
Display: 80~260V
4.Current: test range: 0~100A
Display: 0.00~99.99A

Precautions

1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.
3. Wiring order can not be wrong.
4. This module is suitable for indoor, please do not use outdoor.

Packing including:
1x 80 ~ 260VAC 100A Power Multimeter w/ Open-close structure Current Transformer
