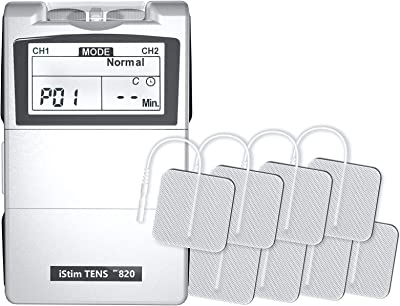

iStim EV-820 TENS Machine with 8 of electrodes,for Pain Management, Back Pain and Rehabilitation

iStim ev-820 is your ultimate solution for pain relief. It features 5 stimulation modes, 12 preset programs and adjustable pulse width, pulse rate and treatment timer. Just follow the manual and quick guide, then every user can be clear about this machine and incorporate it into your daily life without any problem

iStim ev-820 is the most popular model of iStim Series, and it 's the basic one for the new user. So every function of iStim ev-820 is designed easy-to-use

iStim ev-820 includes iStim ev-820 TENS unit x1, Electrodes Pads x8, lead wires x2, instruction manual x1, Quick guide x1, 9V battery x1, Sealable Bag x1 and carrying case x1

The 5 modes include Burst, Normal, Modulation, SD1 and SD2. And the special mode includes(P1~P12), please refer to the quick guide to use the proper program on the proper postion. Besides, large liquid display showing the mode name and all settings is ideal for users to check the setting at any time

Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load

Wave Form: Asymmetrical Bi-Phasic Square Pulse

Size: 10.1cm(L) x 6.1cm(W) x 2.45cm(H)

Weight: 150 grams with battery

Pulse Rate: Adjustable, from 2 to 150 Hz, 1Hz/step

Pulse Width: Adjustable, from 50 to 300 microseconds(μS), 10μS/step

Programs: 5 stimulation modes of Burst(B), Normal, Modulation, Strength Duration 1(SD1)and Strength Duration 2(SD2)+1 Special mode(including 12 programs from P1~P12)

Timer: Adjustable, from 5 to 60 minutes or Continuous.

Battery: 9V Battery


#DO NOT USE extra Electrode Gel with electrode pads
