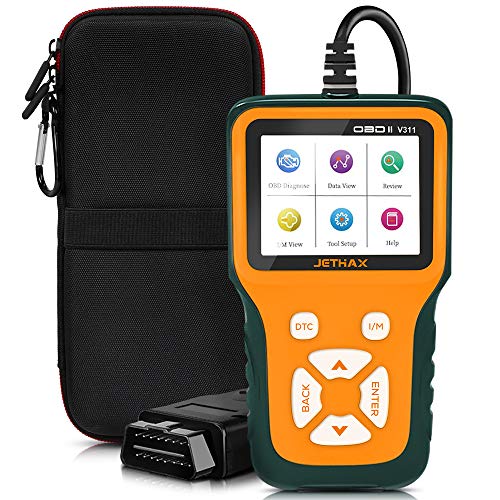

JETHAX Handheld OBD2 Scanner, Car Fault Code Reader Diagnostic Scan Tool Compatible with All Vehicles 1996 and Newer, Check I/M Readiness, 02 Sensor, EVAP Systems

Supported OBD2 Protocols

Nothing is worse than a one-trick pony. Unlike other car code reader diagnostic tools on the market today, the JETHAX OBD2 scanner supports nine (9) OBD2 protocols and is compatible with all post-1996 manufactured cars, SUVs, and light trucks sold in the US, Europe, and Asia.

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2 (5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. IS015765-4 CAN (11bit ID, 500 Kbaud)

7. IS015765-4 CAN (29bit ID, 500 Kbaud)

8. IS015765-4 CAN (11bit ID, 250 Kbaud)

9. IS015765-4 CAN (29bit ID, 250 Kbaud)

Product Parameters

Supported OS: Windows

Working Voltage: DC 8-36V

Working Current: 58 mA

Operating Temperature: -4°F to 149°F

Storage Temperature: -22°F to 176°F

Dimensions: 6.14" x 3.46" x .94"

Available Diagnostic Functions

Read and clear DTCs

Check engine lights

Query freeze frame data

Read data streams

Read vehicle information

Run O2 sensor diagnostics

Test EVAP systems

Read pending fault codes

Read permanent DTCs

Scan I/M Readiness status

Turn off malfunction indicator lights (MIL)

Monitor engine coolant temperature

Mode 6 diagnostics

Usage Notes

☞1.The JETHAX OBD2 scan tool only supports cars with gas engines (vehicles that use gasoline).

☞2.If your vehicle is accorded with OBD II standard, there must a 16 pin DLC (data link connector) below the instrument panel
