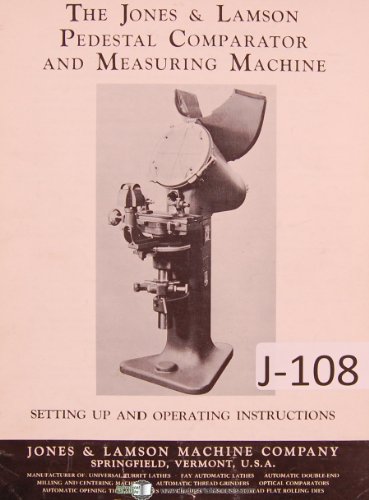

Jones Lamson Pedestal Comparator and Measuring Machine Operation Setup Manual

Industrial Machinery Manuals Is Proud To Offer 1 Quality Bound Copy Of A: Jones Lamson Pedestal Comparator and Measuring Machine Set Up and Operating Instructions Manual This Manual Covers Models: Pedestal Type This Manual Includes: Set Up and Assembly Adjusting the Light Beam Adjusting the Screen Proper Magnifications Care of the Comparator Projecting Profiles Normal to the Helix Horizontal or Lateral Measurements Angle Measuring Attachment Photographs Reflection Attachment Data for Designing Staging Fixtures Flank Angle Correction Factors for 29 degree Thread For 55 degree Threads and 60 degree Thread Test Pin Sizes Measuring Lead of Spirally Gashed Hobs A Method for Projecting Objects with Steep Helices This Manual Has 21 Printed Pages. Year 1944
