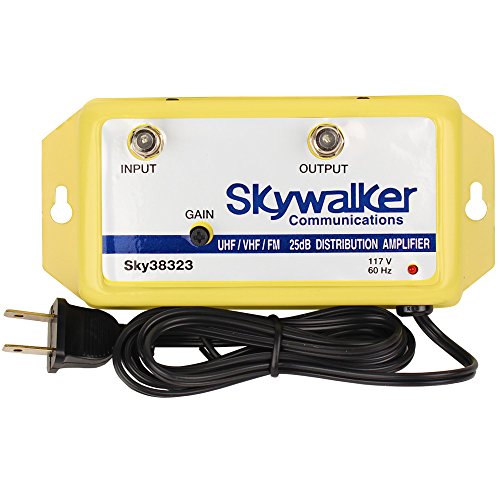

Skywalker Signature Series SKY38323 25dB Amplifier VHF/UHF/FM w/variable gain (SKY38323)

The SKY38323 is designed to amplify or boost an off air TV signal. The unit has variable gain via a control on the front panel (up to 25dB of gain VHF frequencies 21db for UHF frequencies). The product has a metal case for durability and connections are made using standard F type connectors for the in/out ports. Contains a built in power supply that is designed to connect to a standard 120 volt/ 60hz AC outlet. An on/off status light is visible on the front panel.

Features:

• Enjoy the control of variable gain (with up to 25dB of gain) in VHF / UHF / FM bands.
• Low operation interference and minimal noise production & adjustment gain control
• Bandwidth: 47-1000MHz || Maximum Input: VHF 40dB MV / UHF 20dB MV || Gain: VHF 25dB / UHF 21dB
• Heavy-duty metal housing with built-in mounting screw holes & power indicator light

Please note: When using this product a proper signal path must be established.

System With No Pre-Amplifier:
The SKY38323 must be installed immediately before any distribution splitter that supplies signals to your TV's. The proper signal path is: Antenna> coax> amplifier> splitter> TV's.

System With Pre-Amplifier:
The SKY38323 must be installed after the power inserter that supplies voltage to your preamp. Failure to do this correctly will block the DC voltage from getting to the preamp and you will have no picture. Also, you risk damaging the SKY38323. The proper signal path is : Antenna> preamp> coax> power inserter> amplifier> splitter> TV's.

It is very important that your antenna is pointed correctly, all fittings are properly installed and that you have used the proper coax cable. RG-6 is the only cable we recommend for this purpose.
