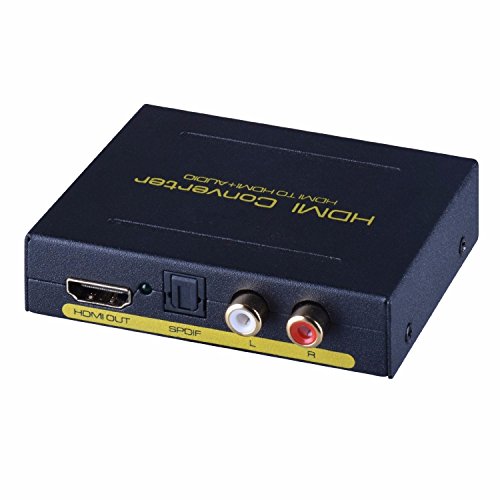

ViewHD HDMI Audio Receiver Extractor | Optical Toslink + L/R Stereo Analog Converter Outputs | 1080P 3D | Model: VHD-H2HSAs / VHD-H2HSAi

The View HD audio extractor supports Fire TV, Roku, Apple TV, Chrome case, DVD player, cable and satellite STB, etc. Please make sure the AV receiver can support the specified audio formats to have sound. This View HD HDMI extractor has one HDMI input, one HDMI output, one SPDIF / optical output and RCA L / R stereo audio output. It can extract digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output. The RCA L/R output will not have sound if the incoming audio is multi-channel audio (>2CH). Set EDID switch to 2CH for RCA L/T stereo application. The SPDIF optical audio output supports all audio formats up to 5. 1CH Dolby Digital 5. 1CH / AC3, DTS 5. 1CH formats. TOSLINK optical audio output does not support higher formats, such as Dolby True HD, DTS-HD Master Audio, PCM5. 1 and beyond. The HDMI output has identical video and audio signals as the A/V signals coming into its HDMI input, no modification. Not recommended for DVI display application, unless the HDMI source can allow users to specify RGB color and disable deep color, to avoid video format conflicts with many DVI displays, DVI color space trouble typically introduces pink and green screen or no picture. PS3, PS4 and PS4Pro are the most user friendly HDMI sources to fix DVI compatibility issues. Package includes: Audio Extractor, Universal 100V - 240V AC to DC 5V1A Power Adapter with US plug & User Manual. Application tips: Set audio EDID to 5. 1CH for DD5. 1CH / DTS5. 1CH, use optical output to connect to audio receiver for surround sound. HDMI output supports all formats including PCM5. 1CH and beyond. For 5. 1CH PCM or above, set audio EDID to pass, connect HDMI output to receiver directly. If no video, do: 1) power up the TV, 2) power up this extractor, 3) Power reset the HDMI source unit. Or connect the HDMI source to the TV directly and use manual settings for all video related options, then put the extract in between. Similar Products with additional features for Consideration: VHD-1X2HSACi / VHD-PRO1X4 VHD-H2HARC / VHD-H2HARCi VHD-PRO3X1 For ARC, HDR, HDCP 2. 2 and HDMI v2. 0 model of HDMI Audio extractor, please check our newest model: VHD-UHAE / VHD-UHAE2
