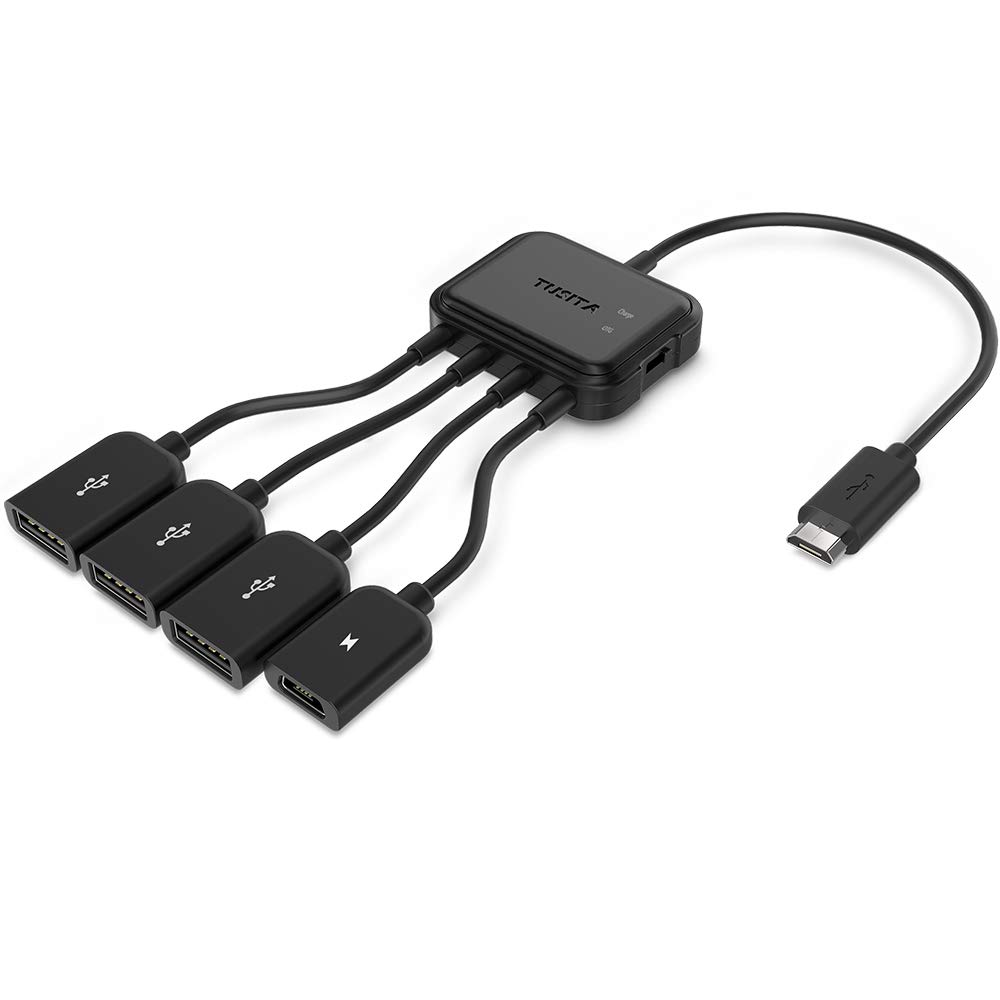

TUSITA Micro USB HUB Adaptor with Power, 3-Port Charging OTG Host Cable Cord Adapter Compatible with Raspberry Pi 2 3 Pi Zero Android Smart Phone Tablet Samsung Galaxy HTC Sony Google LG/Linux

Specification

Micro USB Port:480 Mbps;
USB Port:480 Mbps
Female Micro USB Port: Power supply only, no data transfer;
Power Supply: 5V/1A ~ 5V/2A



1.How to use OTG HUB Adapter for Smartphone/Tablet,

**This OTG HUB Adapter does not support "Fast Charger"(Voltage>5V or Current>2A),otherwise the OTG HUB Adapter will heat up and burn out.


●Step 1: Connect the Micro USB connector into Smart Phone & Tablet.
●Step 2: Connect USB Keyboard/USB Mouse/Flash Device to USB port of this OTG adapter for Smart Phone & Tablet.
●Step 3: Connect the OTG HUB ADAPTER and power supply with a micro usb cable (the micro usb cable needs purchase additional)

This Micro-usb hub has a switch on the right side for using a smartphone or tablet.

you can placing switch in Two modes:

*OTG Mode
Will allow multiple usb devices to communicate with your device.

*Charge Mode
Will charge your device.(On some devices, switching it to charge will put the hub into simultaneous mode, where it will charge and provide device access.On some devices, switching it to charge will cut off the usb communication to the device.)


Some devices that support simultaneous mode we tested or client feedback are as follows:

Samsung Galaxy S3
Samsung Galaxy S4
Samsung Galaxy Note 3
