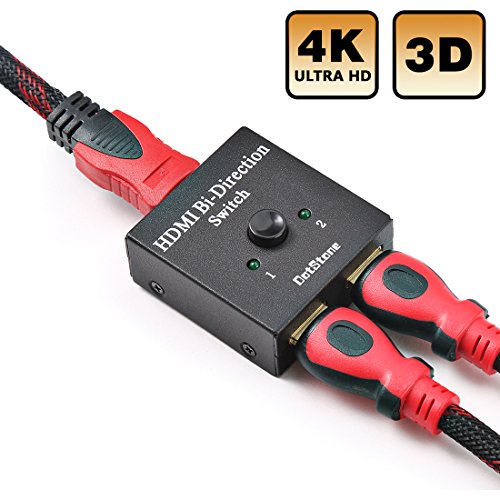

DotStone HDMI Switch Bi-Direction 4K HDMI Splitter 2 x 1/1 x 2 No External Power Required 2 Ports HDMI Switcher Supports Ultra HD 4K 3D 1080P for PS4 Xbox Fire Stick Roku

Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. If you are not 100% completely satisfied.Please feel free to contact us.Our worry-free 18-month warranty and friendly customer service.

This is one device of HDMI 2 ports bi-direction manual switcher. It can easily switch two routes of HD Source to any one HD display or projector. Also it can distribute one HD Source to two HD Display or projector.

Features & Specification
2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV
1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV
MAX operation current:15ma
Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3,V1.4
Main control: Manual select push button to alternate between modes
With 2 LED & display working port
3 HDMI A/F connectors
LED : 2 (Blue),Display working port
Support HDMI 1920 * 1080P * 60(MAX)
Support MAX cable length:5m (total)
Supports HDCP Passthrough

Notes:
Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
No Picture：
1:Pls to make sure that the TV is on and has been connected with the machine
2:To check if the signal source is on and well connected.
3:Check the system connection quality.
4:Check if the line is all good quality.
5:Check the cable quality
Obscure Picture：
1:To try again to connect the cable to be free from the unsuccessful connection. 2:Check the cable quality

Package Included:
1 x HDMI Bi-direction 2x1 Switch
1 x User Manual
