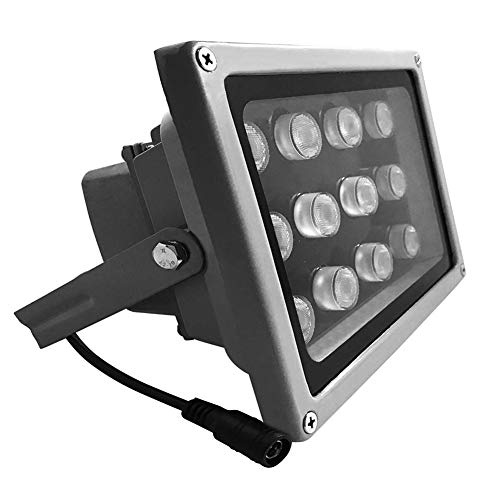

JC Infrared Illuminator 12-Led 90°Wide Angle High-Power IR Illuminator for 850nm IP Camera CCTV Analogue Security Surveillance Camera

Gently Reminder:

 The 850nm infrared light of illuminator, after power it on if you look straightly at the lens of ir illuminator, you could see the dark red glow on each ring of lens, but YOU could NOT SEE any light emitting from it

 To protect the sensor, please install the senor head down to avoid direct sun exposure

 Camera and Illuminator should be installed to the same horizontal and vertical direction

 For after service and technical support, please mail us support@jcheng-security.com. We are ready to help you

 JCHENG IR Illuminator, when the view angle of lens of illuminator is wider, the IR distance will be shorter.Moreover, the practical IR distance and view angle would be finally influenced by the focal length of lens of your camera. Please carefully check with our specification chart before buy

Technical Data:

1.Infrared Leds: build in 12 pieces of high power IR Array LEDs

2.Field View: 90°

3.Power Consumption: 12W

4.Infrared Distance: 114ft to max 131ft

5:Type of Infrared Light:850 nm wavelength

6.Housing Colour: Grey

7 Dimensions:in Mm (L / W/ H): 179*139*131

8.Main Cable Length: 13.4 inches/34cm

9.Working Type of Photocell Sensor: Auto (turn on automatically when the light is lower than 10lux)

10.Protection Class (waterproof and dust proof): IP67

11.Gross Weight: 995g; Net Weight:883g

12.Working temperature: - 20 degrees c to + 50 degrees c

13.Housing Material: fine aluminum and reinforced glass

14.Adapter / Transformer: input ac 100 - 240v, 50 / 60hz; outcome: dc12V, 2A; the power supply plug size: 5.5 x 2.1 mm, male (adapter / transformer is included)

15.Package Content:

1 x 12-Led IR Emitter

1 x DC 12V/2A power adpater
