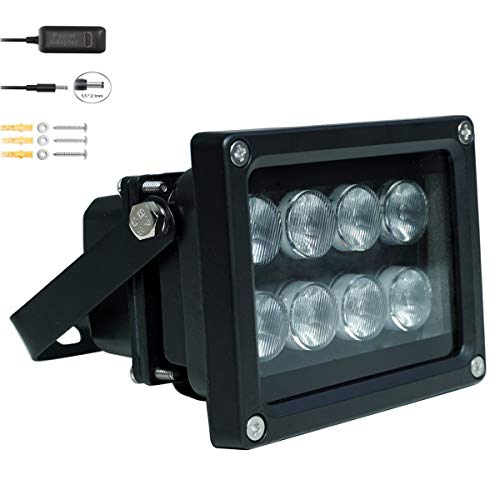

JC IR Illuminator 8-Led Infrared Light Wide Angle 90°with Power Adapter for Security Cameras

Gently Reminder:
 The 850nm infrared light of illuminator, after power it on if you look straightly at the lens of ir illuminator, you could see the dark red glow on each ring of lens, but YOU could NOT SEE any light emitting from it
 To protect the sensor, please install the senor head down to avoid direct sun exposure
 Camera and Illuminator should be installed to the same horizontal and vertical direction
 For after service and technical support, please mail us support@jcheng-security.com. We are ready to help you
 JCHENG IR Illuminator, when the view angle of lens of illuminator is wider, the IR distance will be shorter. Moreover, the practical IR distance and view angle would be finally influenced by the focal length of lens of your camera. Please carefully check with our specification chart before buy
Technical Data:
1.Infrared Leds: build in 8 pieces of high power IR Array LEDs
2.Field View: 90°
3.Power Consumption: 8W
4.Infrared Distance: 100-120feet (30-36meters)
5: Type of Infrared Light:850 nm wavelength
6.Housing Color: Black
7. Dimensions: in Mm (L / W/ H): 114*89*99
8.Main Cable Length: 19.7inches/50cm
9.Working Type of Photocell Sensor: Auto (turn on automatically when the light is lower than 10lux)
10.Protection Class (waterproof and dust proof): IP66
11.Gross Weight: 600g; Net Weight:530g
12.Working temperature: - 20 degrees c to + 50 degrees c
13.Housing Material: fine aluminum and reinforced glass
14.Adapter / Transformer: input ac 100 - 240v, 50 / 60hz; outcome: dc12V, 1A; the power supply plug size: 5.5 x 2.1 mm, Positive Jack
Package Content:
1 x 8-Led Infrared Light
1 x 1A Power Adapter
1 x English User manual
1 x Screw Bag
